Plaque Standard

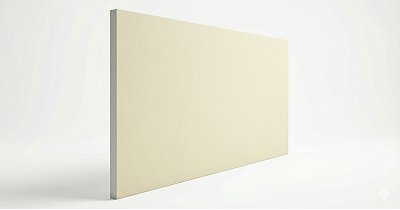

Plaque de Plâtre Standard

Descriptif technique

Plaque De Platre Standard

BA = Bord aminci
Réaction au feu : A2-s1, d0 EN520
Conductivité thermique λ = 0,25 W/(m.K)
Densité : 650-800 kg/m³
Poids nominal

  • 9.5 mm thick board, 6.90 kg/m²
  • 12.5 mm thick board, 8.60 kg/m²
  • 15 mm thick plate, 10.00 kg/m²
  • 18 mm flat, 11.60 kg/m²

Charge de rupture en flexion EN 520

Available Thicknesses and Dimensions

 ThickWideLongPalettem²
BA 109.51200200054129.60
  1200240054155.52
  1200250054162.00
  1200300054194.40
 ThickWideLongPalettem²
BA 1312.51200200042100.80
  1200220042110.88
  1200240042120.96
  1200250042126.00
  1200260042131.04
  1200270042136.08
  1200280042141.12
  1200300042151.20
 ThickWideLongPalettem²
BA 15151200250036108.00
  1200300036129.60
 ThickWideLongPalettem²
BA 1818120025003090.00
  1200300030108.00
Plate thickness (mm)9.512.51518
Longitudinal N≥400≥550≥650≥774
Transverse N≥160≥210≥250≥302

BA 13 plasterboard is a versatile, economical, easy-to-work-with building material, widely used in interior design for insulation and decoration.

  1. Interior partitions: BA 13 is used to create lightweight partitions to separate spaces in homes or offices, offering a quick and economical alternative to brick or concrete block walls.
  2. Wall lining: It is used to line existing walls, improving thermal and acoustic insulation, or to hide imperfections (cracks, irregularities).
  3. False ceilings: BA 13 allows for the creation of suspended ceilings, useful for integrating lighting, hiding cables or improving insulation.
  4. Attic conversion: It is ideal for dressing up attics, due to its lightness and ease of installation on wood or metal structures.
  5. Decoration and finishes: BA 13 plasterboards offer a smooth surface for painting, wallpapering, or other decorative coverings. They also allow for the creation of custom shapes (niches, arches).
  6. Acoustic and thermal insulation: When combined with insulating materials (glass wool, polystyrene), BA 13 improves energy performance and reduces noise pollution.

The board has a non-combustible gypsum core and good fire resistance, but is not suitable for application in systems with fire protection requirements.

Use on ceilings and partitions
Primer must be applied before painting.
